EV Charger Adapter Type 2 to GB/T, Charging Connetor for Chinese GBT EVs, 32A 250VAC Max, Single Phase
4.2 (24 items)
Limited Time SaleUS$35.94 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 222457641 | Release Date | 2026/05/04 | List Price | US$23.96 | Model Number | 222457641 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

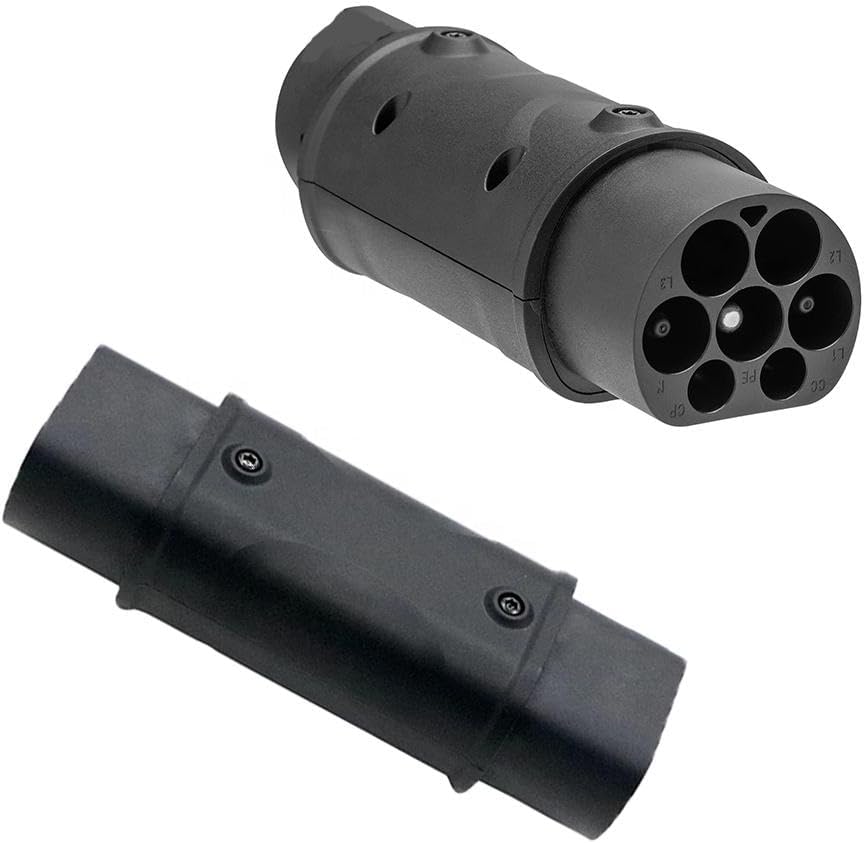

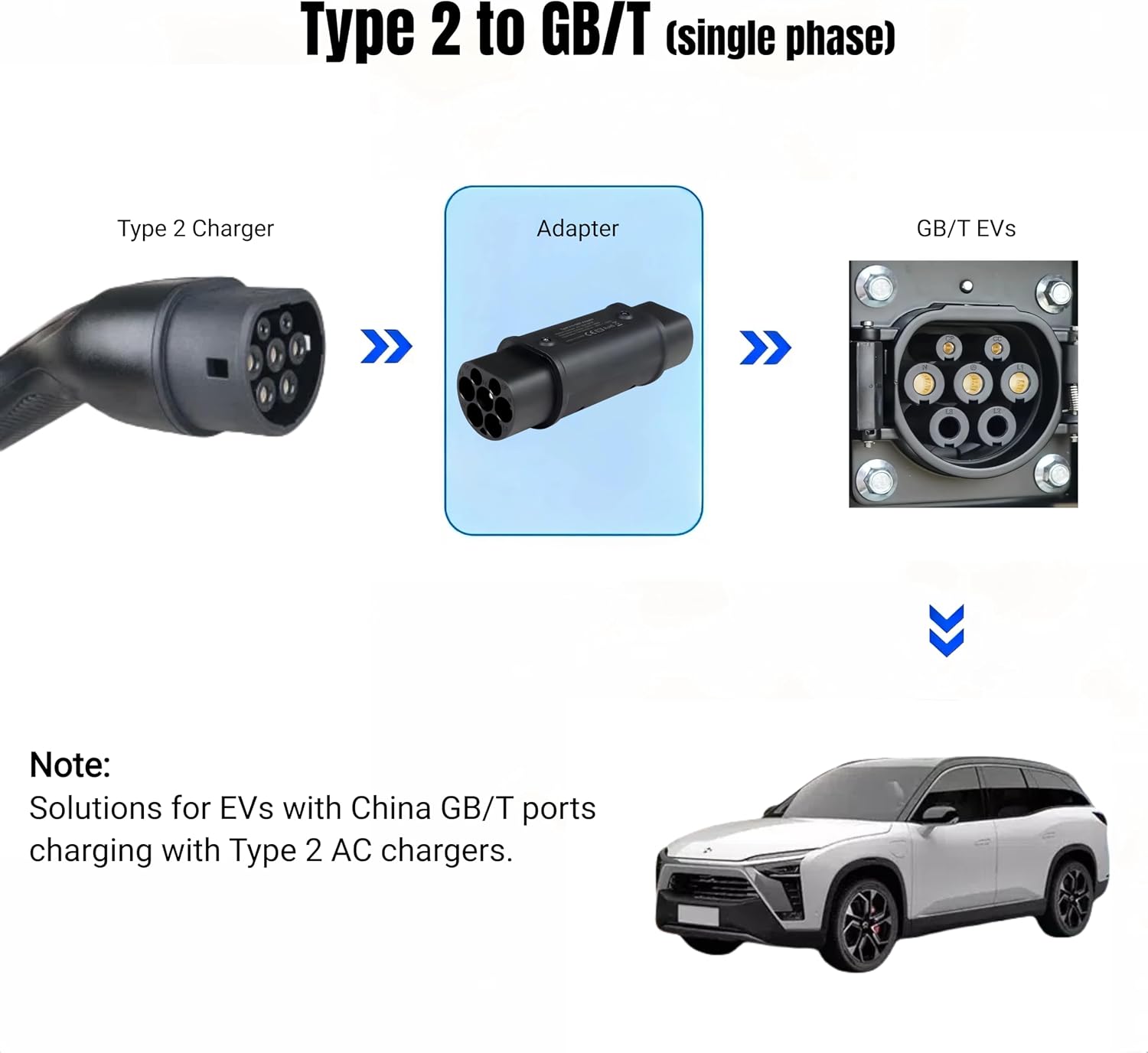

EV Charging Adapter Type 2 to GB/T, 32A 7kW, 1-phase This Type 2 To GBT Adapter (IEC 62196 To GB/T) allows you to charge Chinese electric vehicles at Type 2 AC stations. This converter meets all safety requirements. It is CE certified and complies with the IEC 62196 standard. The pin head is thoughtfully designed with safety insulation, preventing accidental direct contact with human hands and providing an extra layer of protection. The housing material is made of durable and flame-retardant thermoplastic with a UL94V-0 rating. The adapter is compatible with all electric cars which have a GB/T port.
- √ Standard: IEC 62196-2, GB/T 20234
- √ Rated Current: 32A, Single Phase
- √ Rated Voltage: 250VAC Max
- √ Insulation Resistance: 0.5mΩ Max
- √ IP Grade: IP54
- √ Insertion/Withdrawal Force: 45N
- √ Operating Temperature: -30℃ - +50℃ (-22℉ to 122℉)
- √ Mechanical Life(Normal use): ＞10000 Times
| Brand | JecoEV |
|---|---|
| Color | Black |
| Current | AC |
| Wattage | 7 KW |
| Amperage | 32 Amps |
| Portable | Yes |
| Plug Type | Type 2 (Mennekes) - European, GBT - Chinese |
| Model Name | EV Charging Connector Type 2 to GBT |
| Unit Count | 1.0 Count |
| Manufacturer | SG |
| Model Number | SG T2-GBT-32S |
| Power Source | Corded Electric |
| BuiltIn Media | 1 x EV Adapter |
| Input Voltage | 250 Volts |
| Connector Type | Type 2 |
| Current Rating | 32 Amps |
| Output Current | 32 Amps |
| Frequency Range | 50Hz / 60Hz |
| Mfr Part Number | JC0217 |
| Number of Items | 1 |
| Specification Met | CE |
| Compatible Devices | Electric Vehicles (GB/T port) |
| Enclosure Material | Pin: Copper Alloy, Silver plating + Thermoplastic On The Top, Shell: Thermoplastic, Flame Retardant Frade UL94 V-0 |
| Additional Features | Travel |
| Warranty Description | 6 Month |
| Compatible Phone Models | All Chinese electric vehicles with GB/T port |
| Connectivity Technology | Proprietary (GB/T) |
| Compatible Power Plug Type | Type F - 2 pin (German) |
